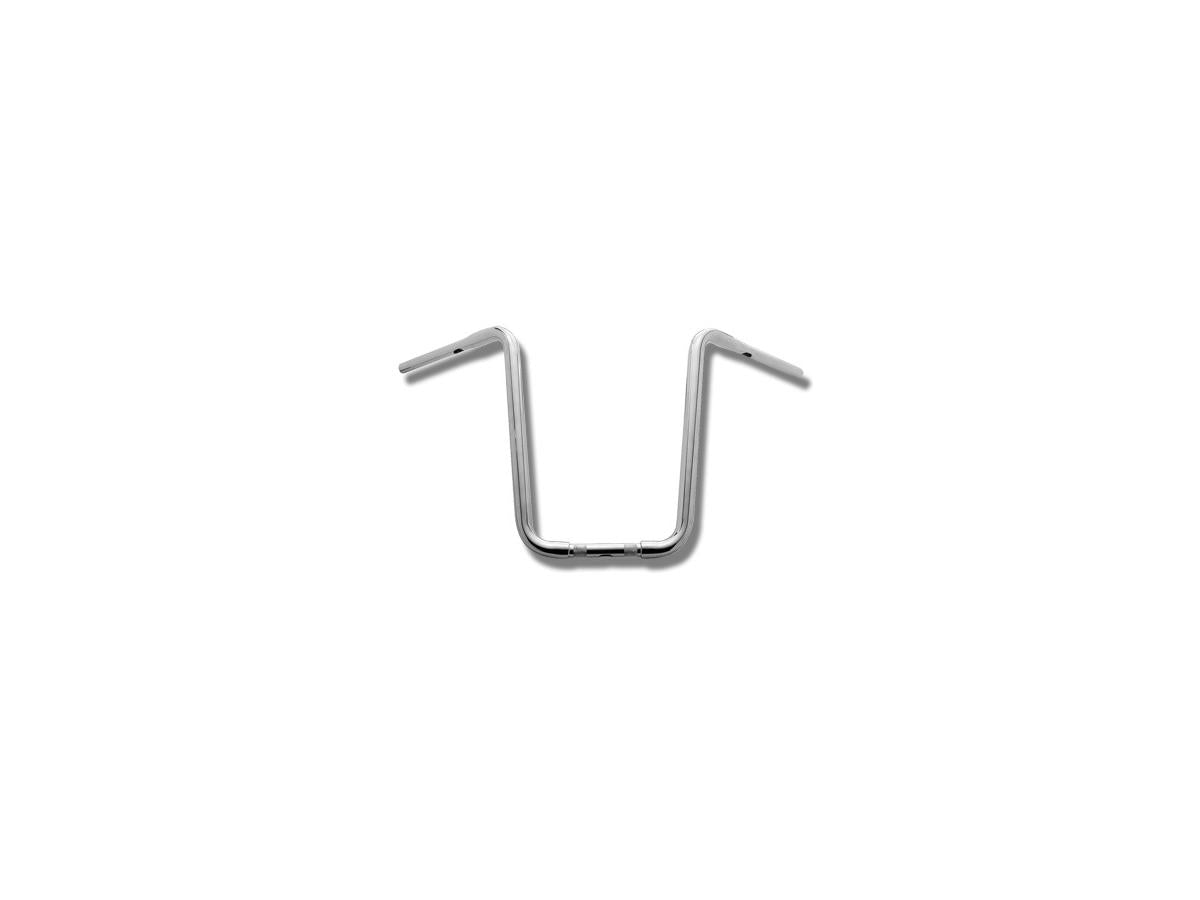

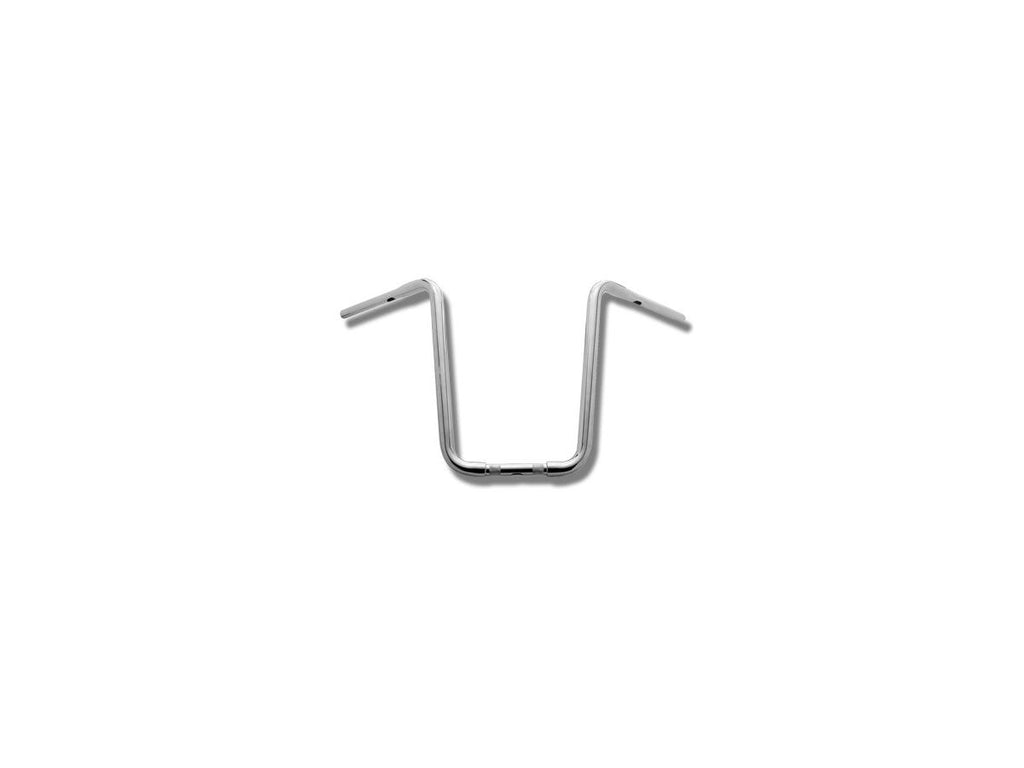

17 Standard Ape Hanger Handlebar Non-Dimpled 3-Hole Chrome 1 1/4" Throttle By Wire Throttle Cables

Description

Standard Ape Hangers are designed to fit most Big Twin and Sportster models with 3.5” centre spacing. These handlebars will also work with Throttle-By-Wire applications.

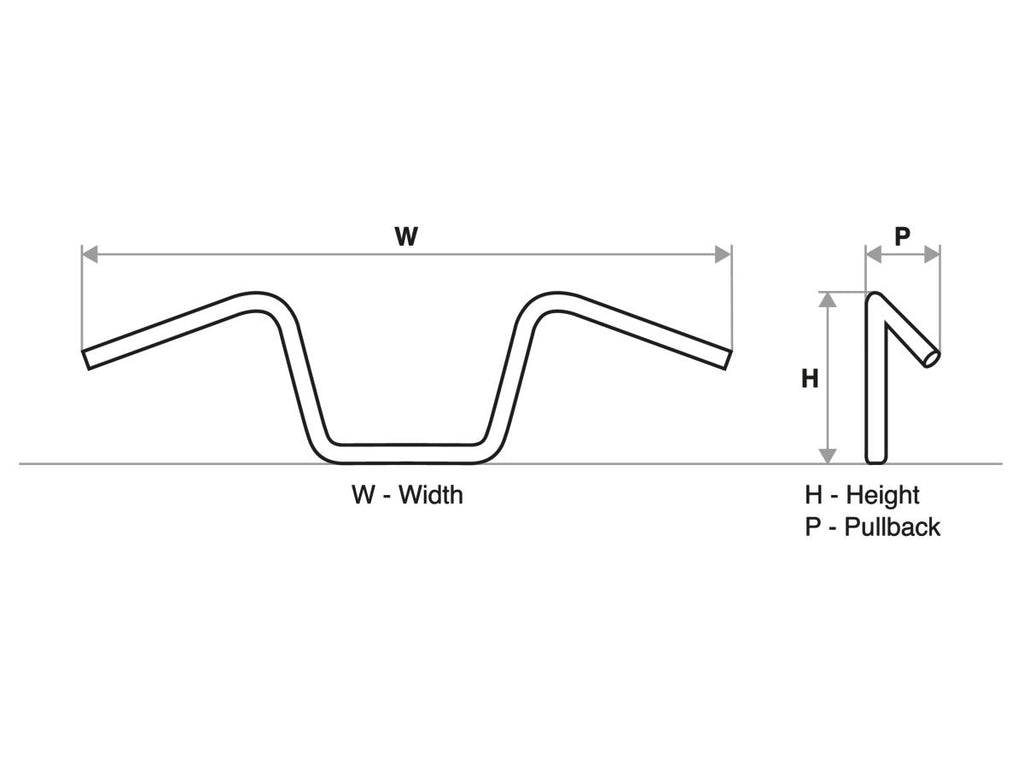

Height 430mm, pullback 220mm, width 870mm

Fitment

86-20 Sportster, (except 08-10 XR1200, 10-13 XR1200X), 91-17 Dyna, 84-24 Softail, (except 19-20 FXDRS 114), 94-03, 07-10, 13, 16-22 FLHR, 98-06 FLHRCI, 99-03, 07-09 FLTR, 99-06 FLTRI, 00-02, 04-06 FLHRI, 04-06 FLHRSI, 07-18 FLHRC, 07 FLHRS, 10, 13, 18-23 FLTRX, 13, 16-19 FLTRU, 15-23 FLTRXS, 20-24 FLTRK, 22-23 FLTRXST, 15-24 FLRT, 23-24 FLTRT
Note: Except models equipped with heated grips. For 15-24 FLTR models the 1" downwards cable routing handlebar clamp system 693596 is needed
Field of application: For use with throttle cables and throttle by wire

Usually ships within 5-7 working days.
